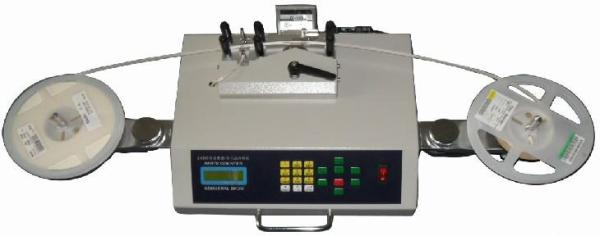

    2017 global hot sales Automatic SMD parts counter LMD-102 Reel Width 8,12,16,24,32,44,56mm

    Ask Lasest Price
    Brand Name : RZX
    Model Number : LMD-102
    Delivery Time : within 3 days after the receipt of payment
    Payment Terms : T/T,Western union,Escrow
    Supply Ability : 9999pcs/month
    • Product Details
    • Company Profile

    2017 global hot sales Automatic SMD parts counter LMD-102 Reel Width 8,12,16,24,32,44,56mm

    Automatic SMD parts counter LMD-102,Automatic leak parts counter,SMD parts counter with missing parts detection

    Overview
    Fast, error-free SMD counters, can count 5000pcs components in 30 seconds.Optional Models include reel counters with barcode scanner and label printer that identify and record quantity and date information.
    Optional pocket-Check feature alerts operator to missing components.

    Prevent a stock shortage and line-down situation by using Component Counter to verify exact stock quantities of all your reeled components.
    The Component Counter allows you to accurately count taped components in an effective and efficient manner without inducing damage to the components or carrier tape. Counting can also be performed in both winding directions.
    In addition to its primary function as a component counter, the can also be simultaneously used to assist with the visual inspection of the components in tape and the quality of the tape seal if desired while winding the tape from reel to reel.

    Parameters:Machine for SMD chip counter
    Voltage: AC110V/220V, 50/60Hz(convertible)
    Capability 5000 pcs /30s
    Power consumption: 30W(2 Motors)
    Counting volume: -99999 ~ 99999pcs
    Size: L470*W300*H180mm
    Net Weight: 10kg
    Reel Diameter: Suitable for SMD Reel with any diameter
    Reel Interval Distance: 2,4,8,10,12,16,24,32,44,56mm
    Reel Width: 8,12,16,24,32,44,56mm

    Features
    1.Full automactic counter, high accuracy, no error.

    2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.

    3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.

    4.The counter use drafting LCD screen, easy operation, full English display.

    5.Use patent reflector,humanized operation platform.

    6.Optional bar scanner and code printer, convenient for component management.

    7. Optical sensor can detect empty components. Motor will stop working when detected leak.

    LMD-101/101S can not detect missing components

    LMD-102/102S can detect missing components
