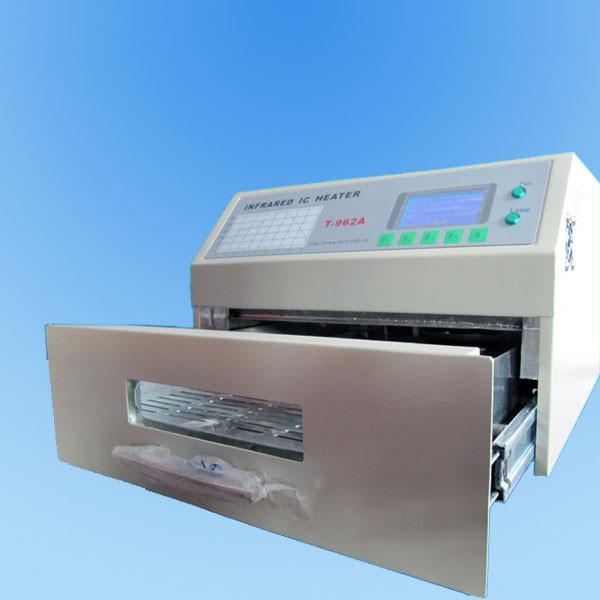

    T-962A 1500 W 300 x 320 mm T962a Infrared IC Heater Reflow Oven Solder Soldering Machine for BGA SMD Rework

    Features


    1. Big infrared soldering area

    Effective soldering area: 300 x 320 mm

    2. Multi temperature wave selectable

    8 kinds of temperature parameter waves selectable; with manual heating function, forced cooling function, etc.

    3. Unique design of temperature rise and homoeothermy

    The cooperation of fast infrared heating with output work 1500 W and homoeothermic fan makes the temperature accurate and even and the whole process automatic and accurate in accordance with the preset temperature wave. No need of extra control.

    4. Comprehensive functions

    With functions of reflow soldering, drying, heat preservation, finalizing the design, fast cooling, etc.

    Can solder single and double PCB panels with all kinds of encapsulation form such as CHIP, SOP, PLCC, QFP, BGA, etc;

    Can be used for the glue solidifying, circuit board thermal aging, PCB maintenance, etc;

    Specifications


    Model

    T962A

    Power Supply

    AC 220 V / 110 V; 50 - 60 Hz

    Heat Style

    infrared radiation + circulating wind

    Rated Power

    1500 W

    Cycle Time

    2 - 8 min

    Control Mode

    8 intelligent temperature waves

    Temperature Range (°C )

    0-280

    Drawer Size (mm)

    300 x 320

    Size (mm)

    430 x 370 x 260

    Dimensions (mm)

    510 x 450 x 330

    Gross Weight (kg)

    15
